25_HES-SO-VS_IP3.12_Basic Electronic Circuits
Looking for 25_HES-SO-VS_IP3.12_Basic Electronic Circuits test answers and solutions? Browse our comprehensive collection of verified answers for 25_HES-SO-VS_IP3.12_Basic Electronic Circuits at cyberlearn.hes-so.ch.
Get instant access to accurate answers and detailed explanations for your course questions. Our community-driven platform helps students succeed!

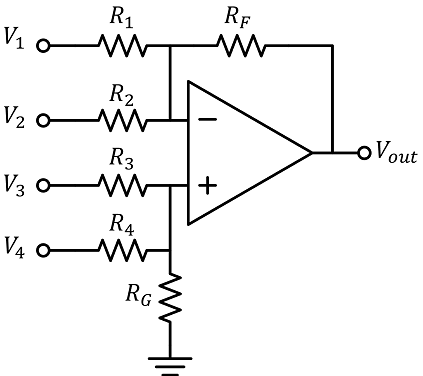

Calculez la tension Vout pour:
V1=7,5 V, V2=-7,5 V, V3=-5 V, V4=6,5 V, R1=16 kΩ, R2=18 kΩ, R3=33 kΩ, R4=27 kΩ, RF=51 kΩ, RG=11 kΩ

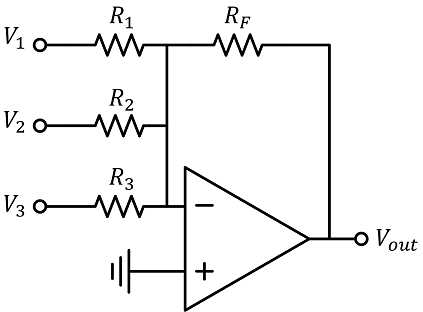

Calculez la tension Vout pour:
V1=-3 V, V2=7,5 V, V3=1 V, R1=20 kΩ, R2=30 kΩ, R3=33 kΩ, RF=36 kΩ,

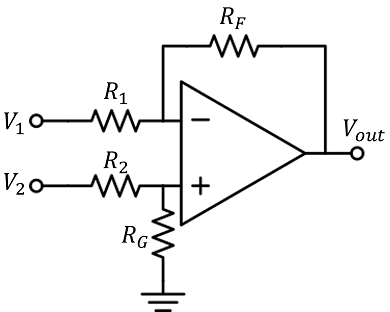

Calculez la tension Vout pour:
V1=5 V, V2=-6,5 V, R1=33 kΩ, RF=30 kΩ, R2=30 kΩ, RG=15 kΩ

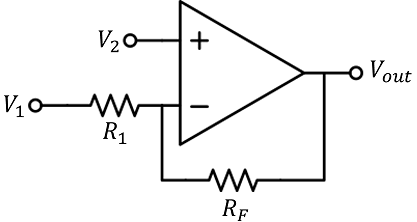

Calculez la tension Vout pour:
V1=7,5 V, V2=-2,5 V, R1=24 kΩ, RF=22 kΩ
Calculez la tension Vout pour:
V1=2,5 V, V2=6 V, R1=27 kΩ, RF=30 kΩ

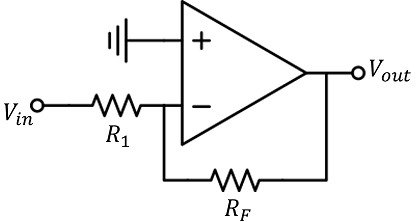

Calculez la tension Vout pour:
Vin=7,5 V, R1=24 kΩ, RF=15 kΩ

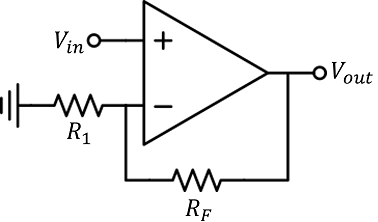

Calculez la tension Vout pour:
Vin=9,5 V, R1=27 kΩ, RF=6,8 kΩ
Calculez IC en [mA]
Calculez VCE en [V]
Calculez la resistance d'entree, Rin en [kΩ]
