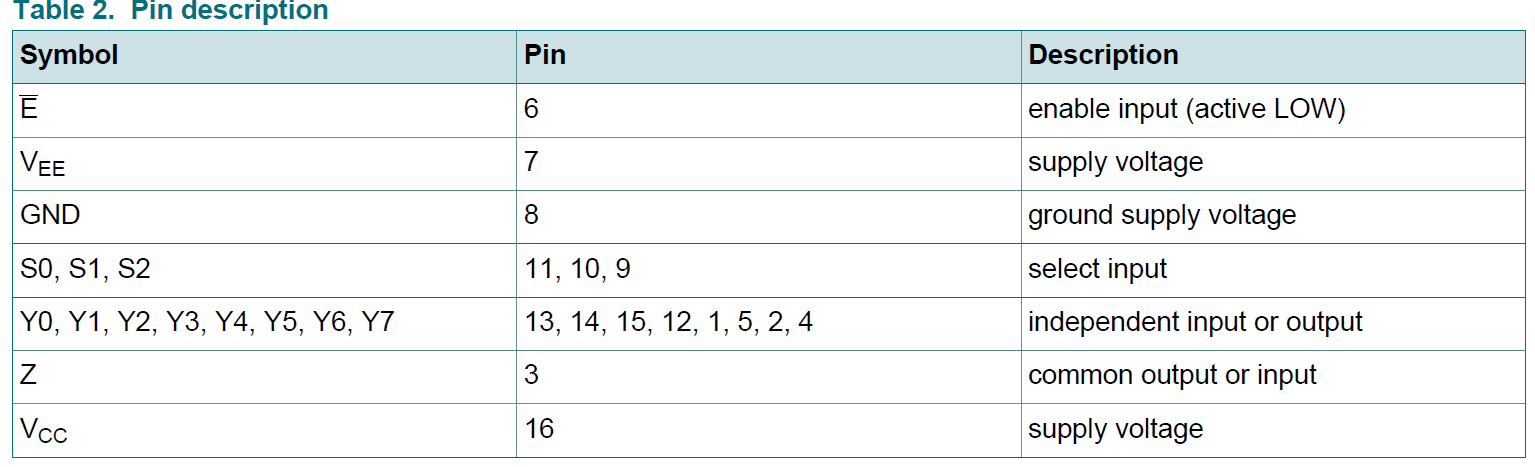

Pour commander dynamiquement 6 capteurs analogiques avec une seule entrée Arduino (A0), on peut :
Pour réaliser un compteur qui compte jusqu'à 3 et recommence

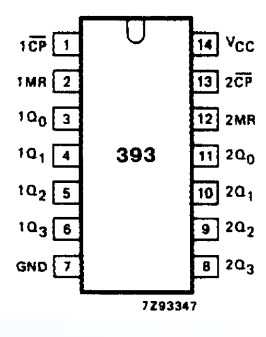

74HC393, quelle(es) affirmation (s) est vraie (s)?
The master resets are active-HIGH asynchronous inputs to each 4-bit counter identified by the "1" and "2" in the pin description.A HIGH level on the nMR input overrides the clock and sets the outputs LOW.
Pour commander dynamiquement 6 capteurs analogiques avec une seule entrée Arduino (A0), on peut :

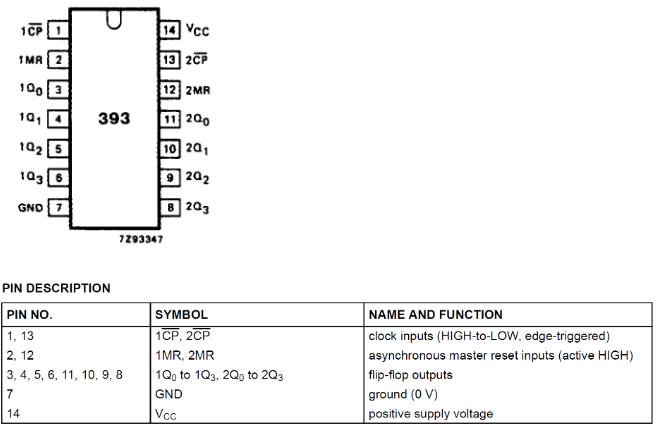

74HC393, quelle (es) affirmation (s) est fausse (s) ?

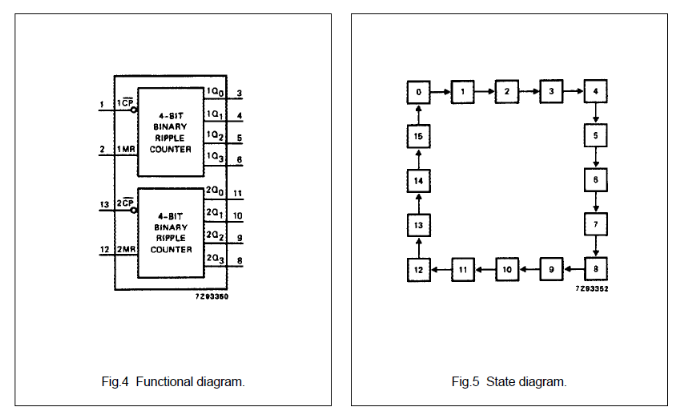

The 74HC/HCT393 are 4-bit binary ripple counters with separate clocks (1CP and 2 CP) and master reset (1MR and 2MR) inputs to each counter. The operation of each half of the "393" is the same as the "93" except no externalclock connections are required.The counters are triggered by a HIGH-to-LOW transition of the clock inputs. The counter outputs are internally connected to provide clock inputs to succeeding stages.

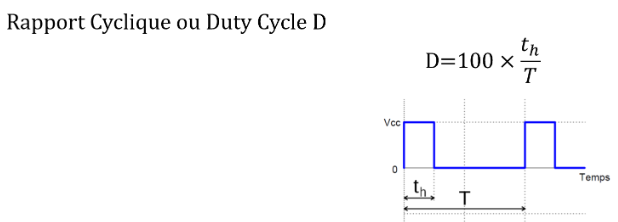

La tension moyenne d'un signal PWM ayant un rapport cyclique de 20% et une amplitude Vcc=10V est:

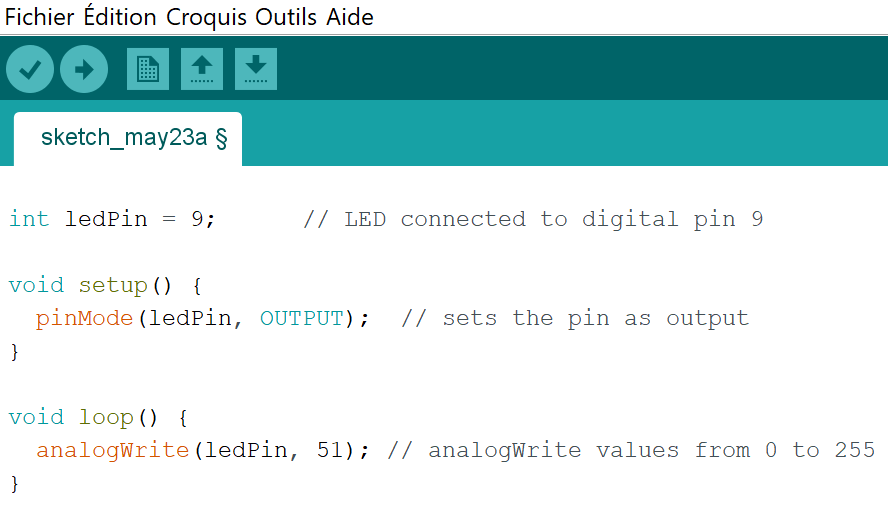

Ce code permet de générer un signal PWM dont le rapport cyclique en % est de: ( donner la valeur numerique en %)

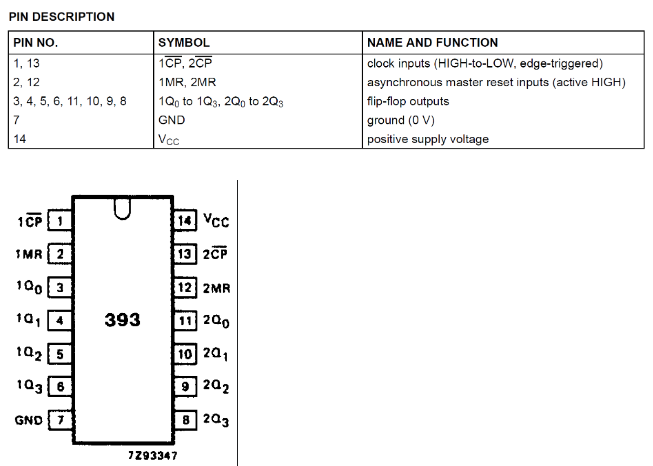

74HC393, quelle (es) affirmation (s) est fausse (s) ?
The 74HC/HCT393 are 4-bit binary ripple counters with separate clocks (1CP and 2 CP) and master reset (1MR and 2MR) inputs to each counter. The operation of each half of the "393" is the same as the "93" except no externalclock connections are required.The counters are triggered by a HIGH-to-LOW transition of the clock inputs. The counter outputs are internally connected to provide clock inputs to succeeding stages.

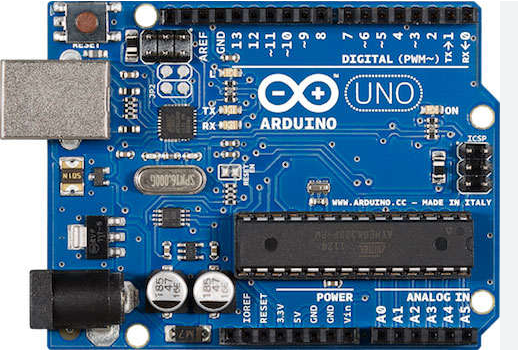

on peut générer un signal PWM sur la broche:

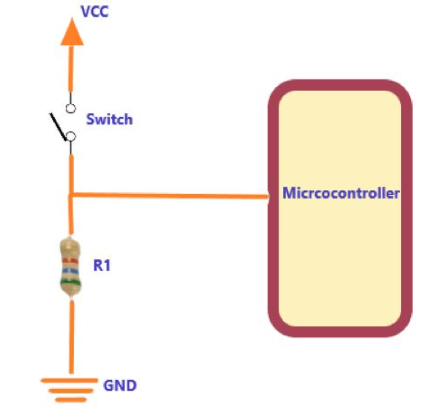

Soit le circuit suivant:
