THE DIAPHRAGM

The diaphragm is the primary muscle used in the process of inspiration, or inhalation. It is a dome-shaped sheet of muscle (and connective tissue) that is inserted into the lower ribs. Lying at the base of the thorax (chest), it separates the abdominal cavity from the thoracic cavity. The diaphragm can clearly be seen separating the two cavities (label 16) in the coronal image below. It is a thin, skeletal muscle that can contract voluntarily.

During inhalation the diaphragm contracts & flattens, increasing the space for the lungs to fill with air. During exhalation the diaphragm relaxes and its dome shape increases, decreasing the thoracic volume and thereby assisting the lungs to empty.

_________________________________________

These are seen below as:

• aorta (label 4)
• oesophagus (label 3)
• Inferior vena cava (label 10)

_________________________________________

See anterior view of the abdomen below: The oesophagus (label 7) and aorta (label 25) can be seen going through the diaphragm. The vena cava is seen on the right side as a hole in the diaphragm (label 10).

_________________________________________

Additional resources:

1. Watch the The Diaphragm gross-anatomy video in Acland's Anatomy

Navigate to Trunk > MSK structures of the Trunk > 3.2.6 Diaphragm (4:14min)

For access you need to be logged in to the library: go to https://guides.lib.monash.edu/mnhs/anatomy_resources then click on Aclands video atlas then type in "diaphragm" to the search bar (the video is the top result).

Checklist to consider:

1. Note the central tendon of the diaphragm
2. Observe the location of the 3 main holes in the diaphragm - the aortic opening, the eosophageal hiatus and vena caval foramen

You do NOT have to learn about the diaphragmatic attachments, muscles or crura.

The structures traversing the diaphragm include:

Below, is a para-sagittal cross-section through the foot.

Observe all the articulating bones via the shiny white cartilage present on the apposing surfaces.

Approximately how many bones can you see in this cross-section?

Identify the spongy (trabecular/cancellous) bone components. Some obvious spongy bone is indicated by label 1. Spongy bone is composed of a network of bony struts, and filled with bone marrow.

Compact (cortical) bone is seen at the periphery of bone, and is solid, dense bone.

Bone is a highly vascular tissue: different bones of the skeleton have different amounts of blood supply.  Some, such as the bones of the toes, have abundant blood supply; some bones have a moderate blood supply, such as the tibia; while others, such as the head of the femur in the hip joint have a limited blood supply.

Bone marrow is the flexible connective tissue in the internal cavities in bones and is a major source of mesenchymal stem cells. It is comprised mainly of blood cells and adipose tissue.

Which of the following is true of bone marrow? It contains mesenchymal stem cells which are:

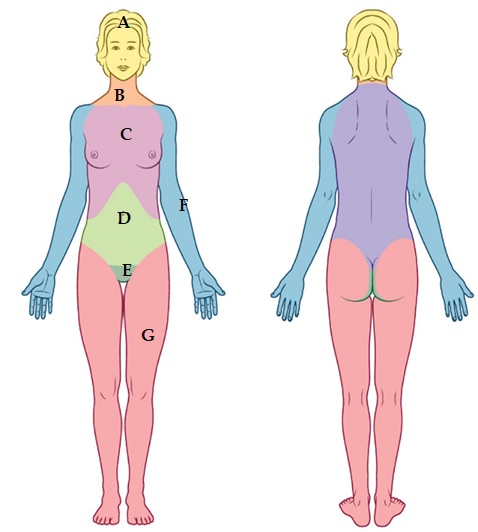

Match the structures below with their corresponding letters (in image above):

Match the description with the anatomical structures of the EYE:

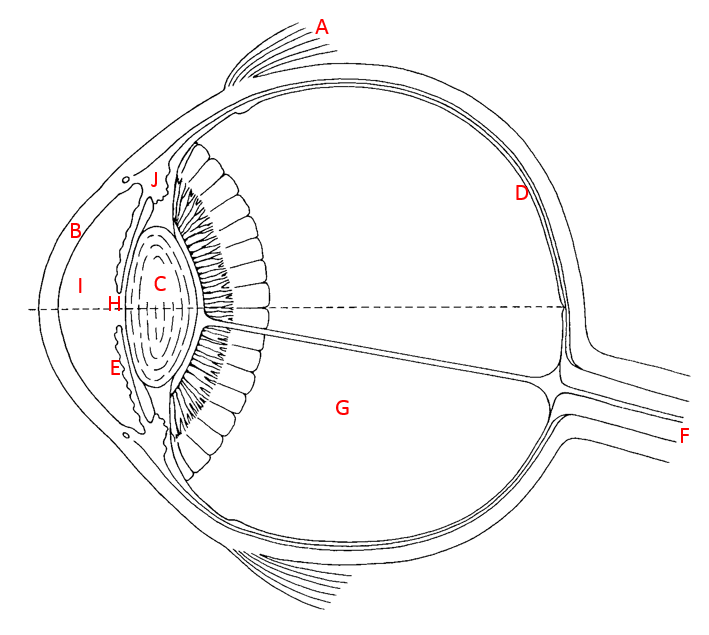

Identify the labels on the diagram of the adult eye.

Which special sense is detected by more than one cranial nerve? Which cranial nerves are they?

Match the following cranial nerves to the type of sensory information the transmit.

The structure indicated with the red arrow is:

The tissue below is:

The structure/tissue on the left is:
