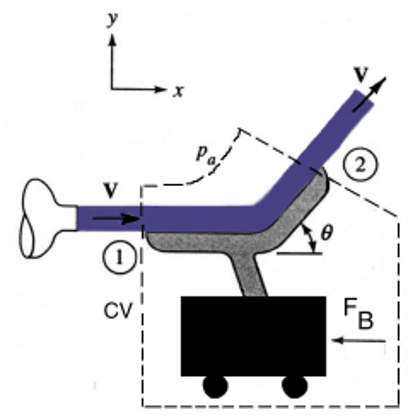

A horizontal jet of water, that is moving at a velocity of 10 m/s with a mass flow rate of 1 kg/s, hits a curved vane fixed on a mobile cart. If the angle (theta) is 60^o. The force required to hold the cart stationery (F_B) is ... N

A horizontal jet of water, that is moving at a velocity of 10 m/s with a cross-section area of 0.001 m², hits a curved vane fixed on a mobile cart. If the angle (theta) is 60^o and the force exerted on the cart (F_B) is 8 N. The cart velocity is ... m/s (to the right).

Water flows in a horizontal pipe of constant diameter. At section 1, the pressure is measured to be 3 bar while it is 2 bar at section 2. The sum of all head losses between 1 & 2 is ... m

Take g = 10 m/s²

A horizontal jet of water, that is moving at a velocity of 10 m/s with a mass flow rate of 2 kg/s, hits a curved vane fixed on a mobile cart. If the angle (theta) is 60^o and the cart is moving at a velocity of 5 m/s (to the right). The force exerted on the cart (F_B) is ... N

A horizontal jet of water, that is moving at a velocity of 10 m/s with a mass flow rate of 2 kg/s, hits a curved vane fixed on a mobile cart. If the angle (theta) is 60^o and the cart is moving at a velocity of 5 m/s (to the right). The force exerted on the cart (F_B) is ... N

A horizontal jet of water, that is moving at a velocity of 4 m/s with a mass flow rate of 1 kg/s, hits a curved vane fixed on a mobile cart. If the angle (theta) is 90^o and the cart is moving at a velocity of 2 m/s (to the left). The force exerted on the cart (F_B) is ... N

Air is compressed through an air compressor. If the air enters the compressor with a volume flow rate of 1 m³/s and density of 1 kg/m³. At the exit section, the air density doubles. The volume flow rate at the exit section of the compressor is ... m³/s

A horizontal jet of water, that is moving at a velocity of 10 m/s with a mass flow rate of 1 kg/s, hits a curved vane fixed on a mobile cart. The angle (theta) that is required to maximize the force exerted on the cart is ... ^o

A horizontal jet of water, that is moving at a velocity of 10 m/s with a mass flow rate of 1 kg/s, hits a curved vane fixed on a mobile cart. If the angle (theta) is 60^o. The force required to hold the cart stationery (F_B) is ... N

A horizontal jet of water, that is moving at a velocity of 10 m/s with a cross-section area of 0.001 m², hits a curved vane fixed on a mobile cart. If the angle (theta) is 60^o and the force exerted on the cart (F_B) is 8 N. The cart velocity is ... m/s (to the right).
