Consider the following digital-to-analog converter (DAC), which uses a 3-bit word () to control which of the switches turns on (’1’ means closed) while all the others are kept turned off (’0’ means opened). For this end, it uses a decoder that converts each input to a 8-bit word () by means of one-hot encoding (only a single bit is ’1’).
Assuming the reference voltage , what is the analog output voltage for a binary input 101.

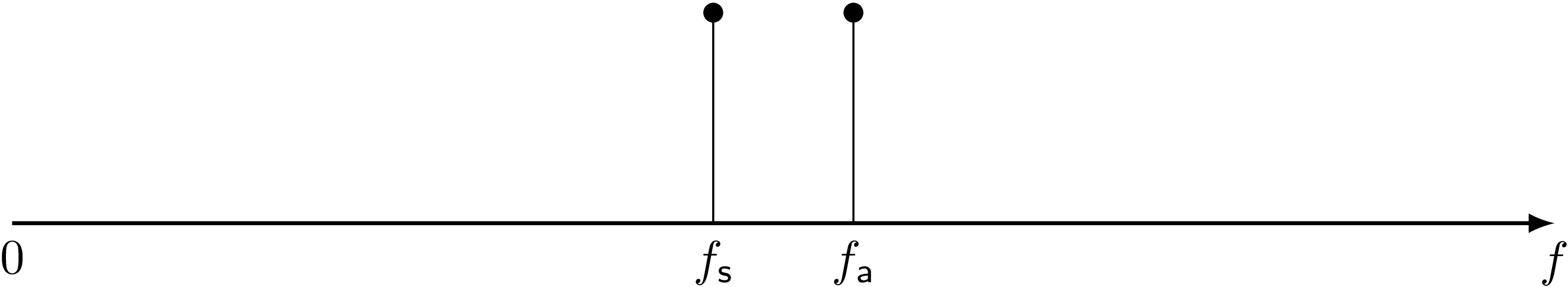

A single tone , where , has been sampled by an analog-to-digital converter (ADC) at the sampling frequency .
A sine wave has been obtained at new frequency (). Determine the frequency value of of the resulting tone .

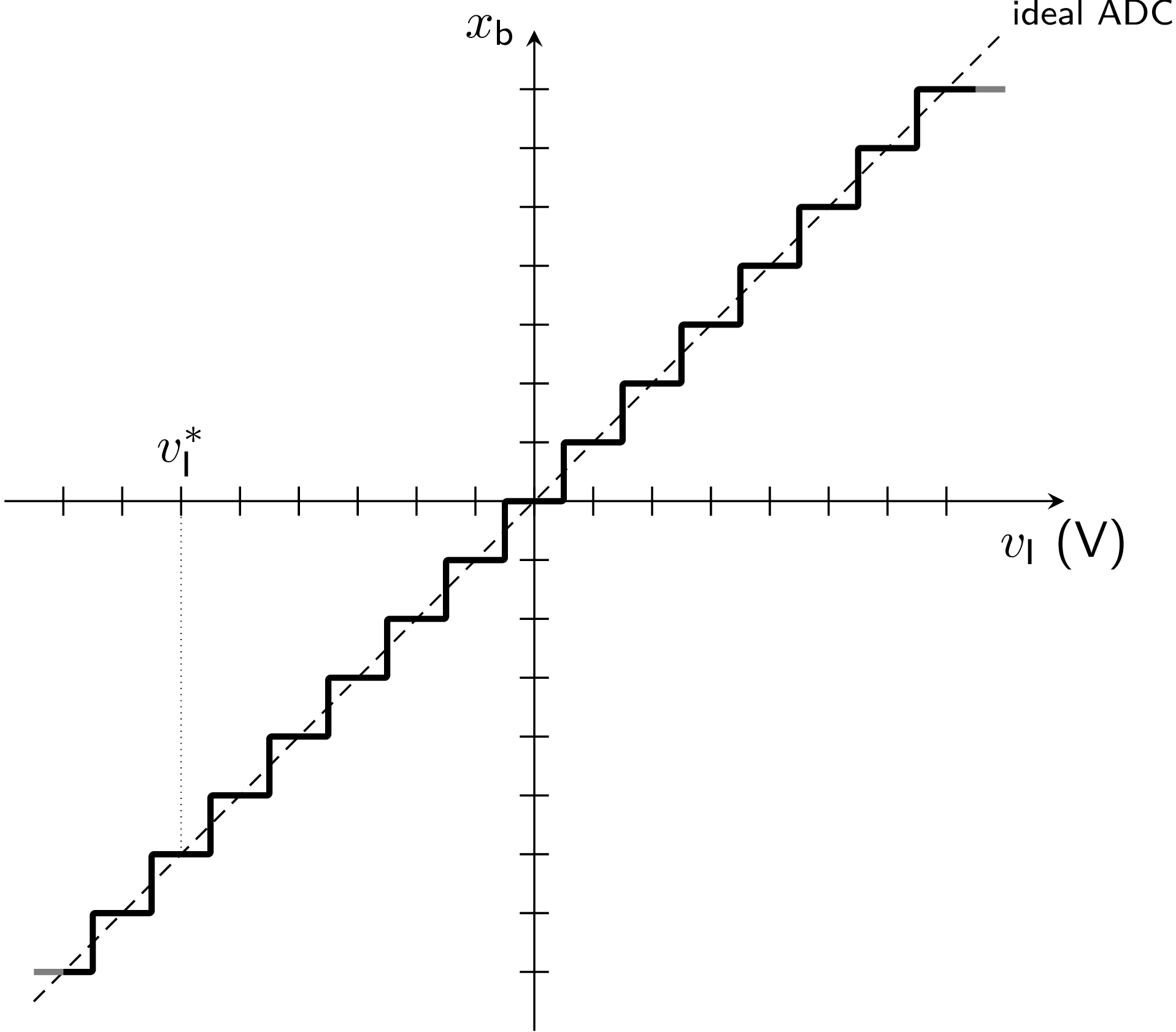

Consider the following transfer function of a perfect bipolar analog-to-digital converter (ADC), with a uniform mid-tread quantizer, in which the input value shown is .
For an input of , obtain the digital output in two’s complement binary.

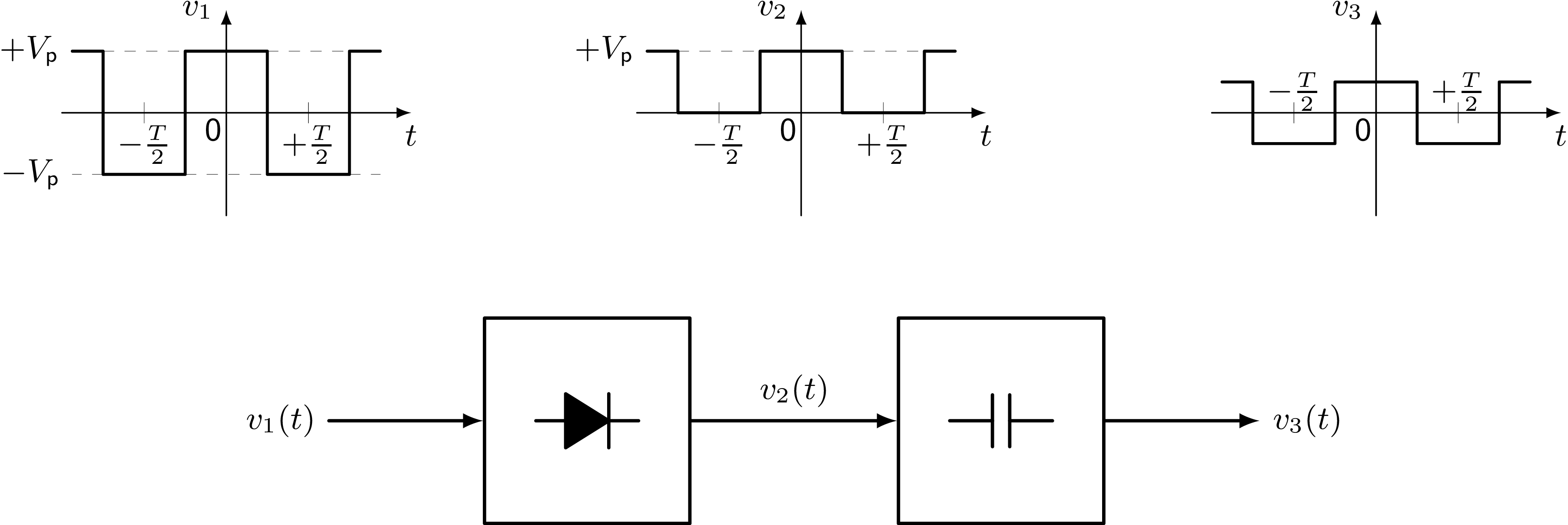

Consider a square-waveform signal with zero mean value, as shown in the figure, where its root-mean square (RMS) value is .
Consider that, in a second phase, a half-wave (ideal) rectification is performed with as input, obtaining the signal shown in the figure.
Finally, the continuous component (dc) of is removed, obtaining the signal .
Determine , i.e. the RMS value of .

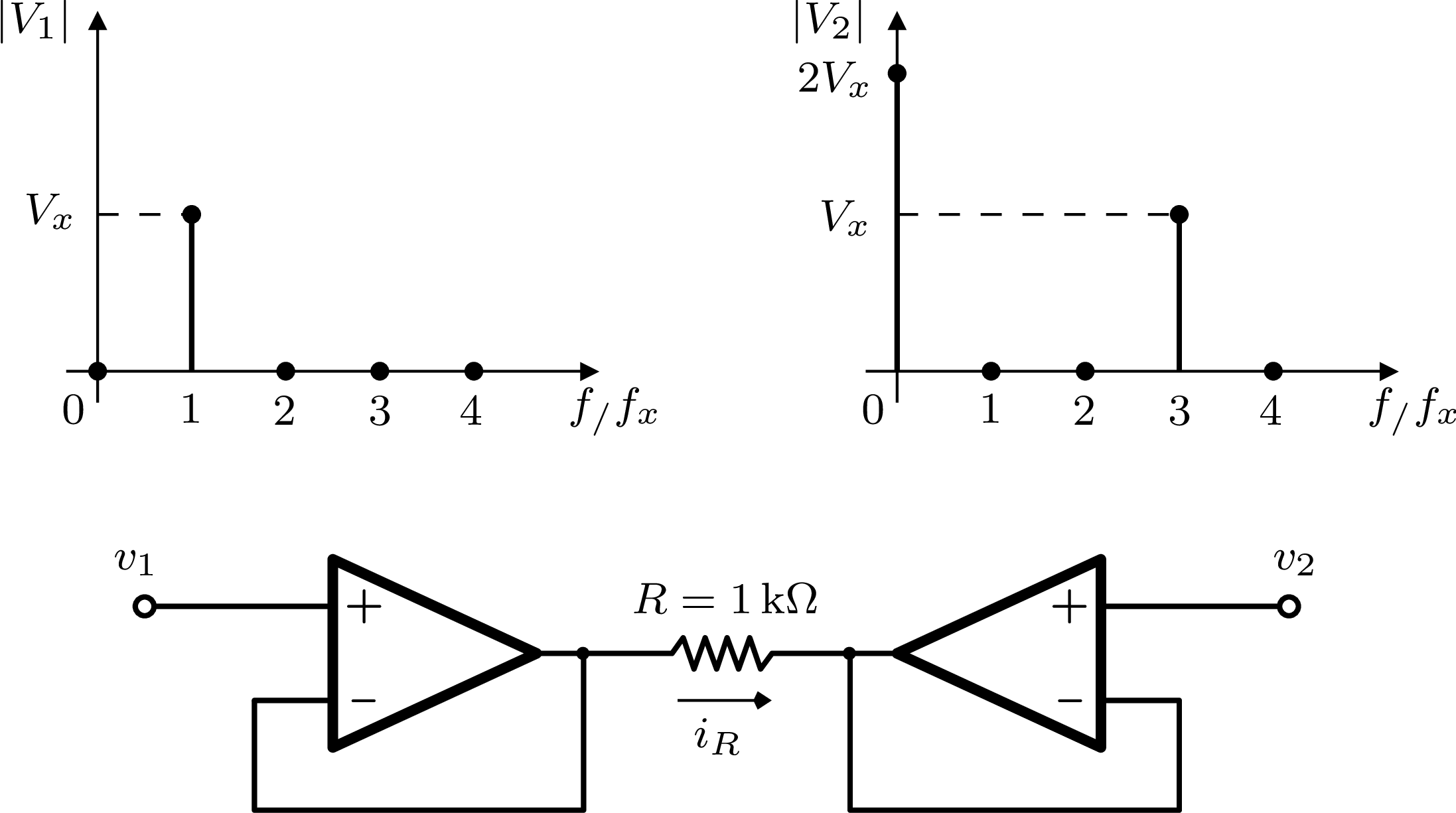

The spectral components (magnitude) of two signals is shown below.
In the circuit obtain Vx assuming that the RMS value of the current in the resistor is 4.2 mA.

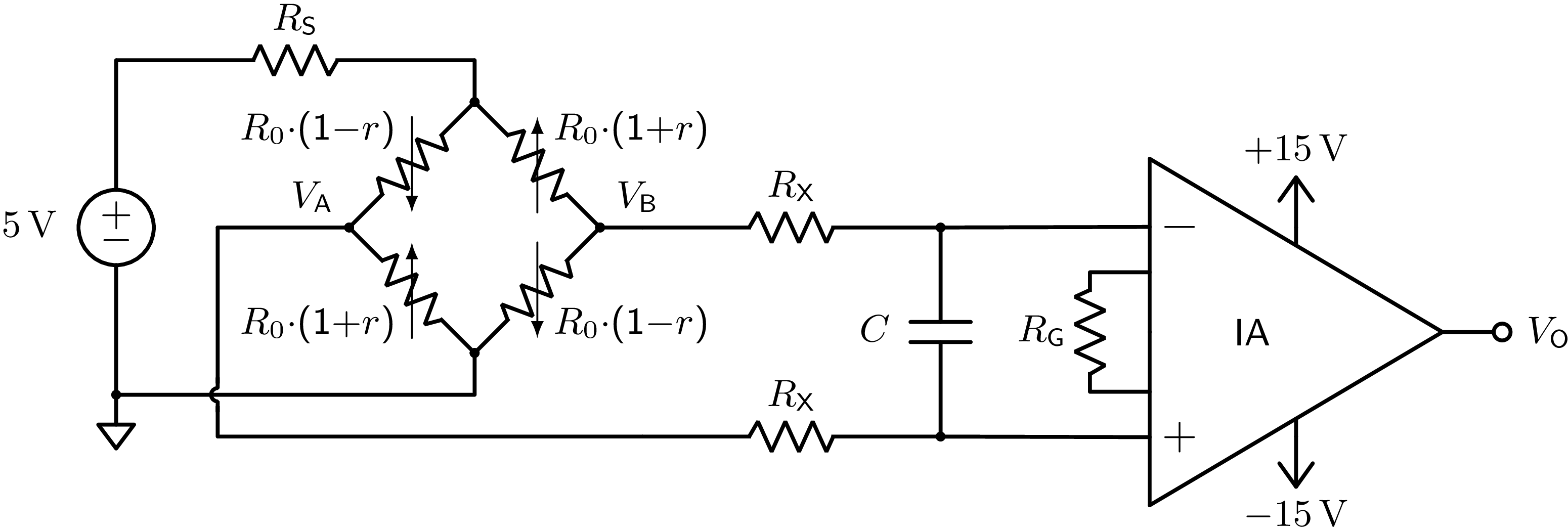

Consider the following voltage amplification circuit in which a Wheatstone bridge is employed at the input of an instrumentation amplifier (IA).
Assume , , , and .
Determine the value of so that the differential component has a low-pass filter response with cut-off frequency at 10 Hz (assume ).

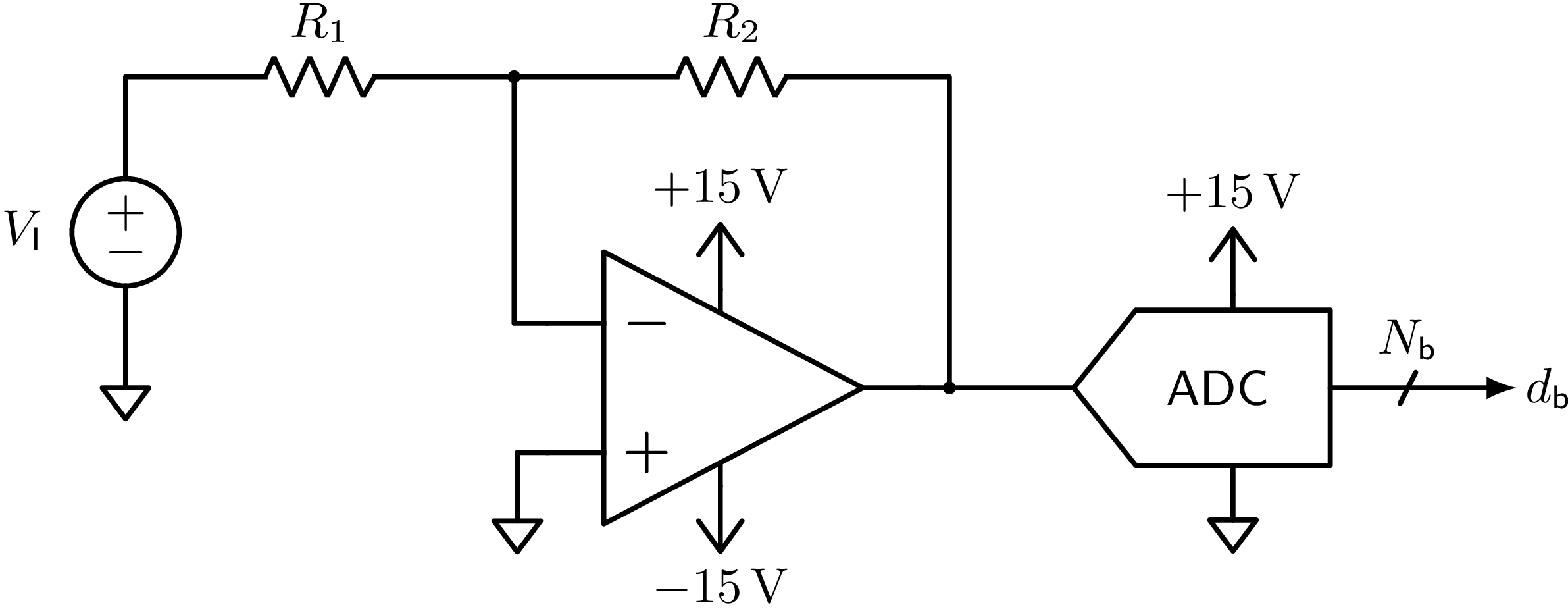

Consider the following voltage reading in which the nominal closed-loop voltage gain of the (ideal) operational amplifier is and the dc output voltage is .
Both resistors are rated at , composed by metal film with thermal coefficients and thermal resistances .
The analog-to-digital converter is unipolar, rail-to-rail input, has bits, and can be assumed perfect.
Determine the minimum nominal value of the resistor for which the gain error is imperceptible.

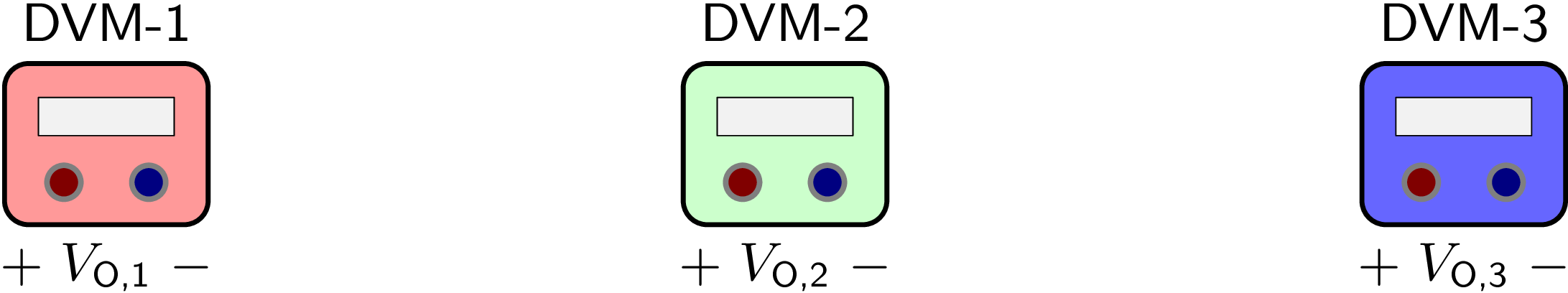

Consider a regulated voltage output that needs to be checked. Three colored DC digital bench voltmeters (DVM) are available: red (DVM-1), green (DVM-2), and blue (DVM-3). Determine which one provides the best measurement uncertainty, i.e., in the reading result , and provide the value of the uncertainty found for that DVM. Assume that all of them provide the same reading .
The accuracy performance for each DVM is summarized below.
| DVM-1 | DVM-2 | DVM-3 | |||
| display: 3 | display: 3 | display: 3 | |||
| range | accuracy | range | accuracy | range | accuracy |
| 400 mV | 0.5 % + 5 LSD | 500 mV | 0.6 % + 5 LSD | 600 mV | 0.1 % + 9 LSD |
| 4 V | 0.6 % + 4 LSD | 5 V | 0.7 % + 3 LSD | 6 V | 0.3 % + 8 LSD |
| 40 V | 0.7 % + 3 LSD | 50 V | 0.7 % + 2 LSD | 60 V | 0.3 % + 6 LSD |

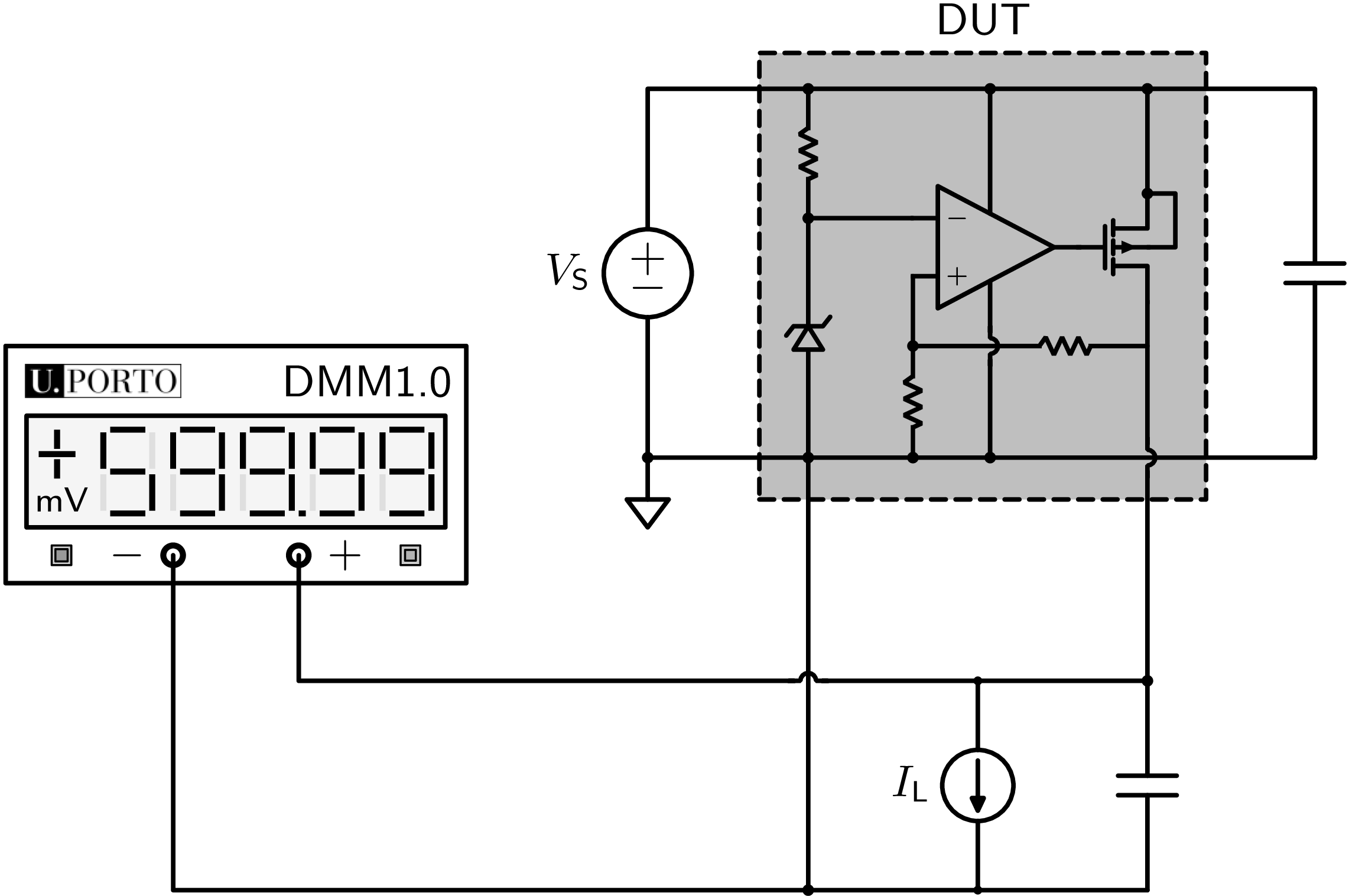

Consider the measurement of the DC output voltage of a device under test (DUT), which consists of a voltage regulator, as shown in the figure. To obtain the voltage output for a given load , a 4 digital multimeter (DMM) was used as a voltmeter, always selecting the most adequate measurement range for the readings.
A large number of independent voltage readings were taken, with . This resulted in an average value and a standard deviation .
Determine the absolute value for the expanded combined uncertainty (from types A and B uncertainties) at a 95 % confidence interval.
The DMM manufacturer’s accuracy for the DC voltmeter is provided in the table below.
| DC Range | Resolution | Accuracy |
| (reading + LSD) | ||
| 60 mV | 0.001 mV | |
| 600 mV | 0.01 mV | |
| 6 V | 0.1 mV |

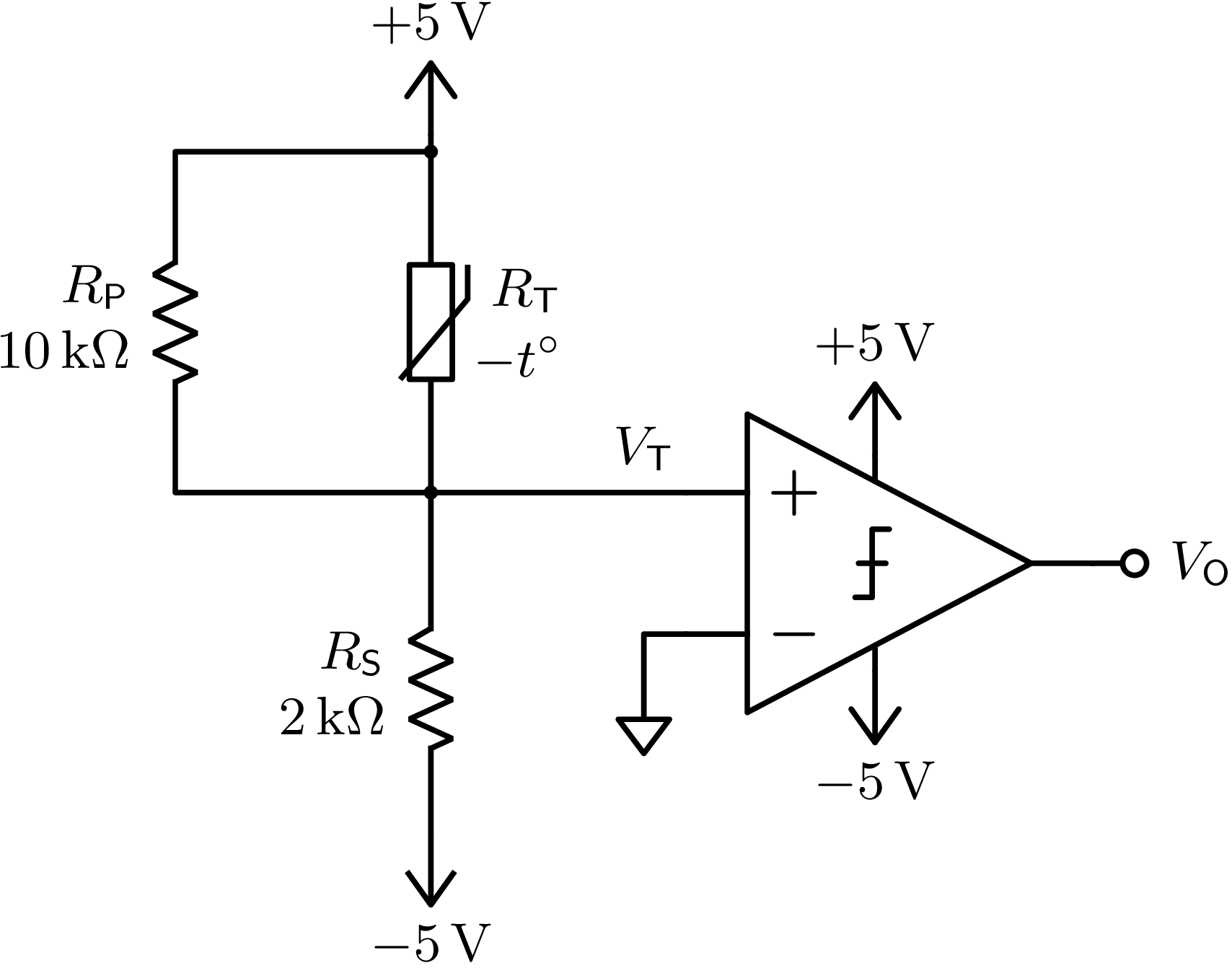

The following circuit is used as a thermostat. When the temperature rises above a critical value (), the comparator output goes high, indicating overtemperature.
The circuit employs an NTC thermistor () for temperature sensing, with at 25 °C and , assumed constant for all the temperature range.
Determine the temperature (in °C) at which the comparator changes its output value (i.e., ).
