2.2 Determine the maximum shear stress in the shaft.
Give your answer to 3 significant figures.
Question 2

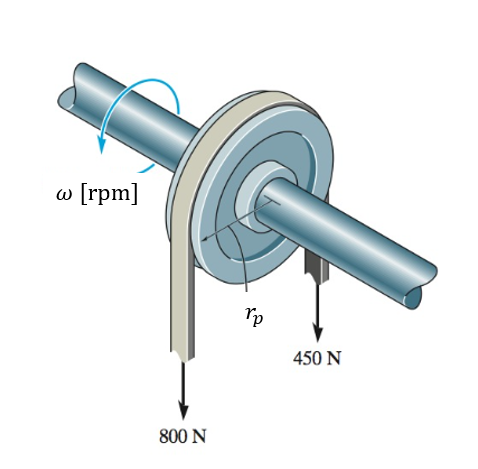

A 60-mm-diameter shaft rotates at 430 rpm. This motion is caused by the unequal belt tensions on the pulley of 450 N and 800 N, as shown in the figure. The radius of the pulley is 95 mm.
rpm: revolutions per minute
2.1 Determine the power transmitted by the rotating shaft.
Give your answer to 3 significant figures.
1.3 Determine the value of the reaction force Fx according to the direction shown in the figure.
Provide your answer to 3 significant figures (e.g. the distance between G and F is LGF = 3.60 m)
The value for the reaction force Fx is equal but opposite to Gx.
1.2 Determine the value of the reaction force Gy according to the direction shown in the figure.
Provide your answer to 3 significant figures (e.g. the distance between G and F is LGF = 3.60 m)
Question 1
Beam AB is pin supported at A and supported by a cable at B; it has a length of LAB = 1.5 m. A separate cable CG holds up the frame. The distributed weight of beam AB is 1.9 kN/m. The distributed weight of column FC is 3kN/m.
1.1 Determine the value of the reaction force Fy according to the direction shown in the figure.
Provide your answer to 3 significant figures (e.g. the distance between G and F is LGF = 3.60 m)
