Which of the following GPIO pins do not default to be GPIO function upon reset?

Select all answers that apply.

Which of the following GPIO pins requires the program to unlock and commit before its configuration can be changed?

Select all answers that apply.

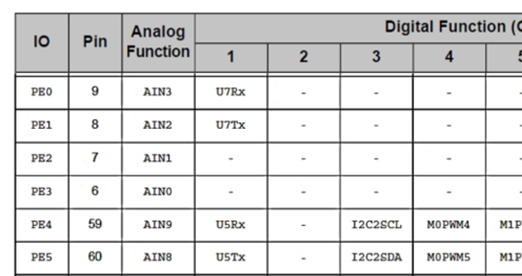

GPIO pin PE4 is to be configured to function as the M0PWM4 function. See below.

GPIO pins PC0 to PC3 are not available on the Tiva LaunchPad header pins because they are already assigned to be JTAG/SWD pins for debug purposes

Analog function is an Alternate function.

Alternate function is a digital function.

Setting the corresponding bit in the GPIOAMSEL register enables the analog function for that pin (if there is a valid a mapping).

The GPIO DEN register bit needs to be set to ‘1’ to configure a port pin to be an Analog function.

The default drive strength of a GPIO port pin is 2mA.

The maximim toggle speed of a GPIO pin when connected to the APB bus is the system bus clock speed.
