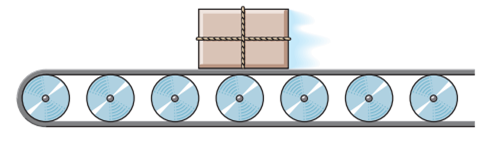

A conveyor belt is designed to transport packages of various weights. A 10-kg package has a coefficient of kinetic friction . If the speed of the conveyor is 5 m/s, and then it suddenly stops, determine the distance the package will slide on the belt before coming to rest.

Question 1

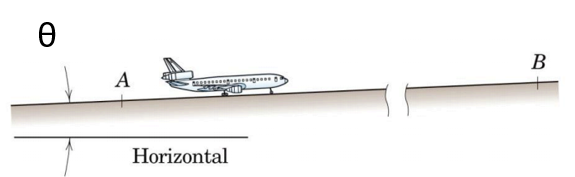

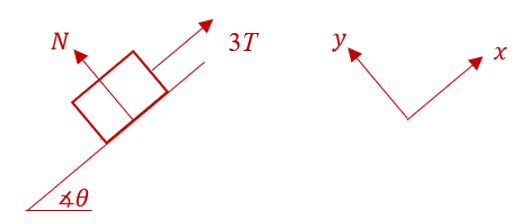

A jet airliner with a mass of m_A kg has three working engines, each of which produces a constant thrust of T kN during its take-off roll.

Consider the runway from A to B as shown in the figure, which has an uphill incline of θ.

Assume a rolling friction coefficient equal to 0.

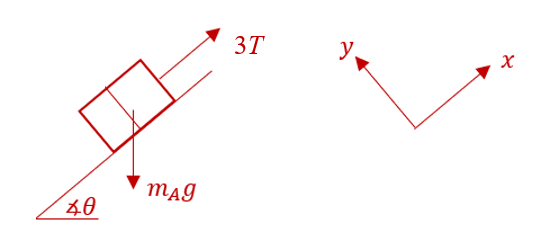

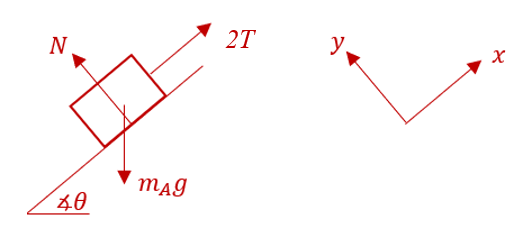

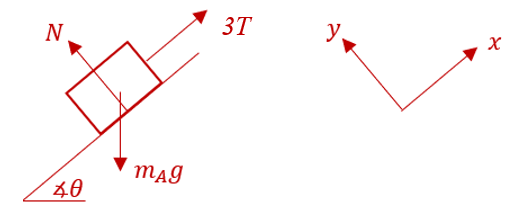

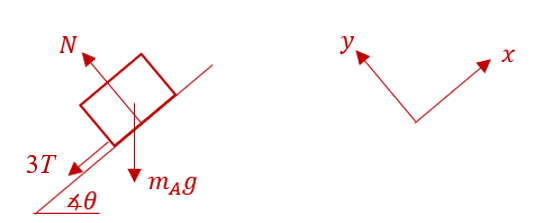

Select the correct free body diagram for the airliner from the options below. Align the coordinate system such that the x-direction is parallel to the runway and the y-direction is normal to the runway.

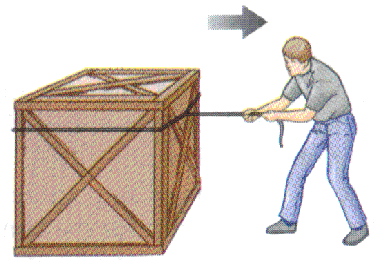

Calculate the frictional force on the crate that is being pulled by a force entirely in the horizontal direction.

The mass of the grate is 100kg and the coefficient of kinetic friction between the crate and the ground is .

Question 1

A jet airliner with a mass of m_A kg has three working engines, each of which produces a constant thrust of T kN during its take-off roll.

Consider the runway from A to B as shown in the figure, which has an uphill incline of θ.

Assume a rolling friction coefficient equal to 0.

Select the correct free body diagram for the airliner from the options below. Align the coordinate system such that the x-direction is parallel to the runway and the y-direction is normal to the runway.

Calculate the frictional force on the crate that is being pulled by a force entirely in the horizontal direction.

The mass of the grate is 100kg and the coefficient of kinetic friction between the crate and the ground is .

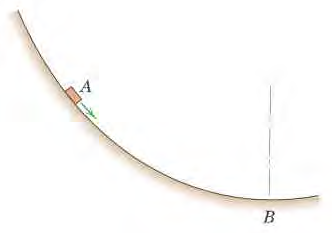

The small 2 kg block A slides down the curved path and passes the lowest point B with a speed of 4 m/s. If the radius of curvature of the path at B is 1.5 m, determine the normal force N exerted on the block by the path at this point. (g=9.81 m/s²)

The small 2 kg block A slides down the curved path and passes the lowest point B with a speed of 4 m/s. If the radius of curvature of the path at B is 1.5 m, determine the normal force N exerted on the block by the path at this point. (g=9.81 m/s²)

Calculate the velocity of the 50-kg crate at s when pulled by the force N as shown below. The coefficient of kinetic friction between the crate and the ground is .  Assume the crate starts from the rest at s.

A conveyor belt is designed to transport packages of various weights. A 10-kg package has a coefficient of kinetic friction . If the speed of the conveyor is 5 m/s, and then it suddenly stops, determine the distance the package will slide on the belt before coming to rest.
