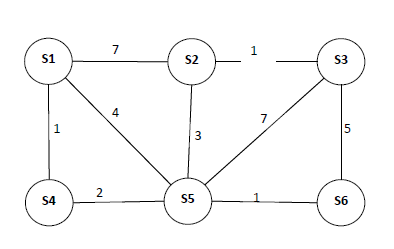

Write down the shortest path between switch S3 and switch S1.

Why does delay distortion NOT occur in wireless (unguided) transmission?

The effective address is a address of ______________ .

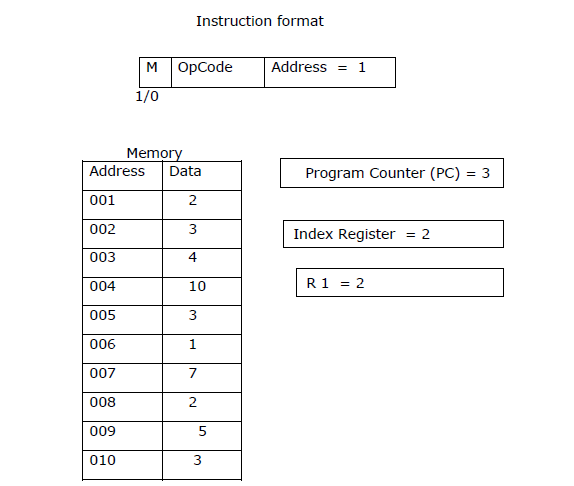

Based on the register and memory contents specified, find the value of the operand for the “Relative Addressing Mode”

Consider the two 4-bit registers r1 contains 10001 and r2 contain 11111. What is the value of r2 after executing the following instructions?

1.       SHR R1,R2

2.       SHL R1,R2

3.       CIL R2

In a Token Ring (IEEE 802.5) network, what specific action does the intended recipient station perform on the data frame as it passes around the ring? ⁹

The way the operands are chosen during program execution is

depend on the ______________ of the instruction.

What is the primary advantage of keeping operands in CPU Registers compared to storing them in main memory?

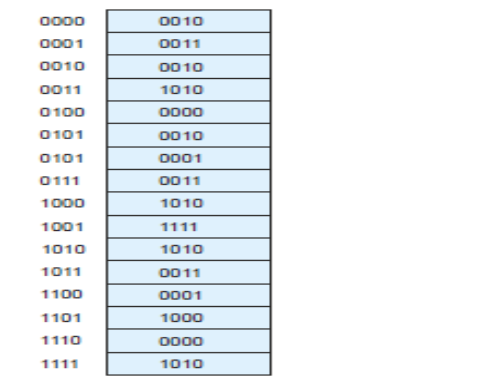

The memory map below gives the contents of each of the locations of a simple memory.  Each of these locations uses 4-bit addresses and contains a 4-bit binary value.  Write the value accessed from memory and loaded into R0 after executing the following instruction.  Assume that r1 initially contains 0001 and r2 contains 001 1

 LOAD  R0, [R1, R2]

 Address                  Memory contents
