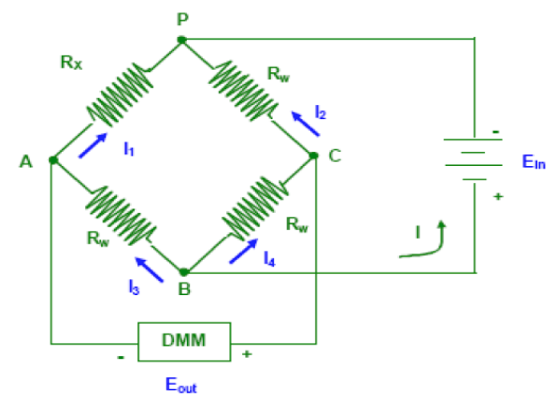

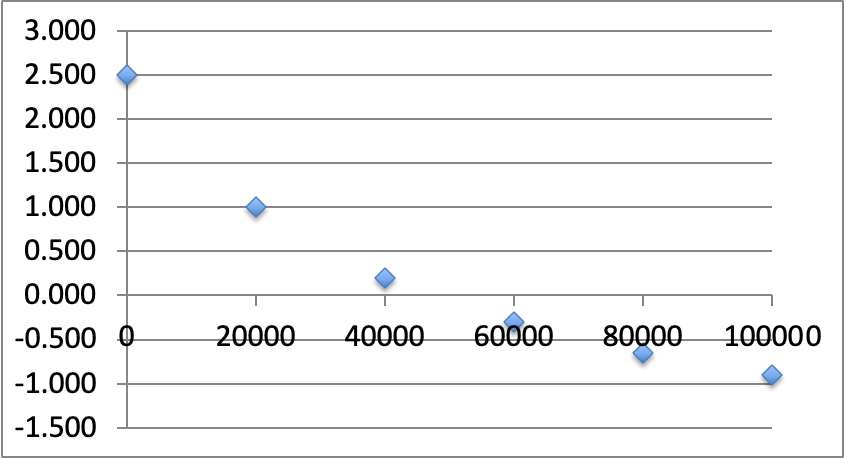

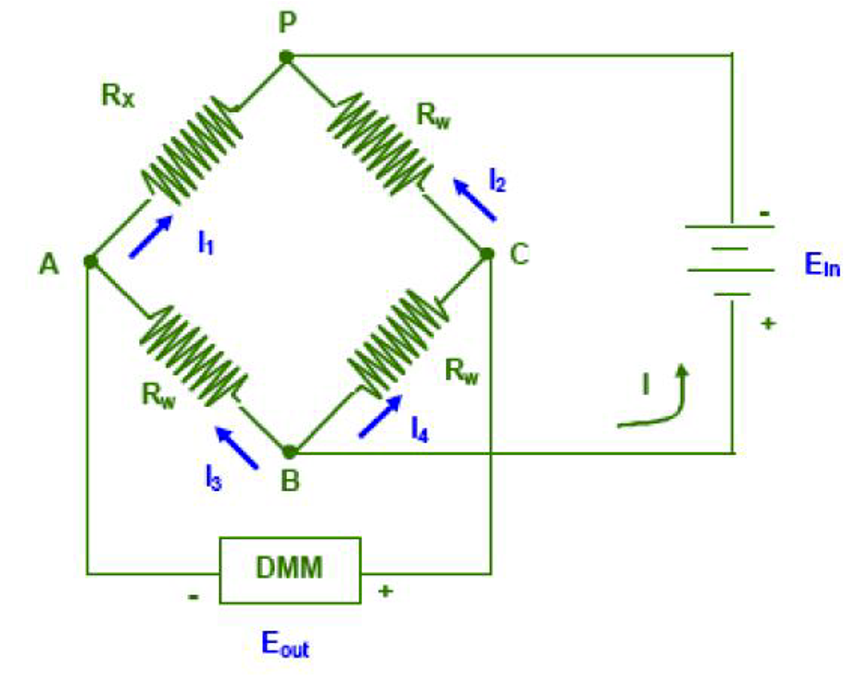

You are using the following circuit with an input voltage E_in of 5 Volts. R_x is a variable resistance, while R_w are of fixed and equal values. If R_x is varied from 0 (cero) to 100 kOhms in steps of 20 kOhms, and you obtain the behavior in the plot to the right, what is the value of R_w ?

100 kOhms

0%

10 kOhms

0%

47 kOhms

0%
