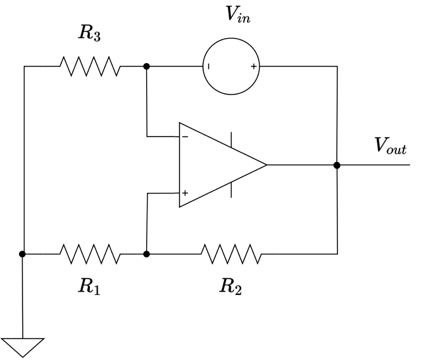

Q1. Op-Amp Output

What is the $V_{\text{out}}$ V_{\text{out}} of this circuit assuming that the ideal OpAmp does not saturate for the conditions given.

$V_{in}$ V_{in}

$\frac{(R_1+ R_2)V_{in}}{R_2}$ \frac{(R_1+ R_2)V_{in}}{R_2}

$-\frac{(R_1+ R_2)V_{in}}{R_1R_2}$ -\frac{(R_1+ R_2)V_{in}}{R_1R_2}

$\frac{(R_1+ R_2)V_{in}}{R_1}$ \frac{(R_1+ R_2)V_{in}}{R_1}

$\frac{R_1R_2V_{in}}{(R_1 + R_2)}$ \frac{R_1R_2V_{in}}{(R_1 + R_2)}

View this question

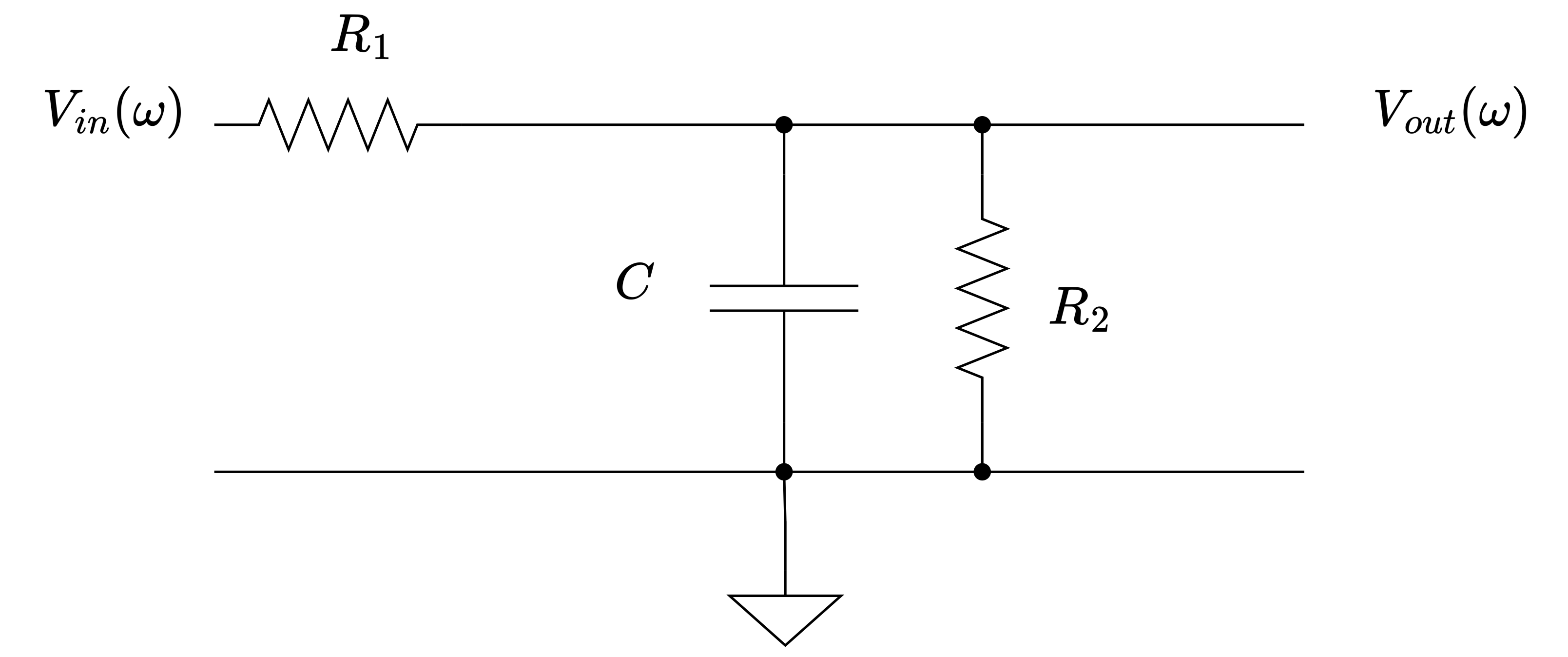

Q7. Determine the transfer function of the circuit

In the angular frequency domain, $\omega$ \omega, determine the transfer function $H[\omega]$ H[\omega] of the circuit below.

$H[\omega] = \frac{R_1}{(R_1 +R_2) - iCR_1R_2 \omega}$ H[\omega] = \frac{R_1}{(R_1 +R_2) - iCR_1R_2 \omega}

$H[\omega] = \frac{CR_1R_2\omega}{(R_1 +R_2) + iCR_1R_2 \omega}$ H[\omega] = \frac{CR_1R_2\omega}{(R_1 +R_2) + iCR_1R_2 \omega}

$H[\omega] = \frac{R_2R_1}{(R_1 +R_2) - iCR_1R_2 \omega}$ H[\omega] = \frac{R_2R_1}{(R_1 +R_2) - iCR_1R_2 \omega}

$H[\omega] = \frac{R_1}{(R_1 +R_2) + iCR_1R_2 \omega}$ H[\omega] = \frac{R_1}{(R_1 +R_2) + iCR_1R_2 \omega}

$H[\omega] = \frac{R_2}{(R_1 +R_2) + iCR_1R_2 \omega}$ H[\omega] = \frac{R_2}{(R_1 +R_2) + iCR_1R_2 \omega}

View this question

Q6. Superposition Theorem

Use the superposition theorem to find the current I_x in the circuit below.

-0.279 A

0.05 A

0.277 A

-0.05 A

0.23 A

View this question

Q5. Superposition Theorem

Use the superposition theorem to find I_0 in the circuit below.

5.5 A

-1.5 A

-2.5 A

2.5 A

-5.5 A

View this question

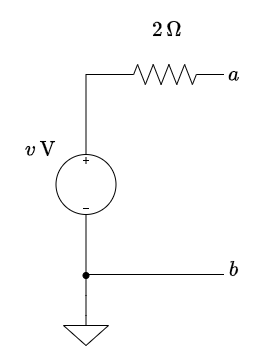

Q4. Thevenin's Equivalent Circuit

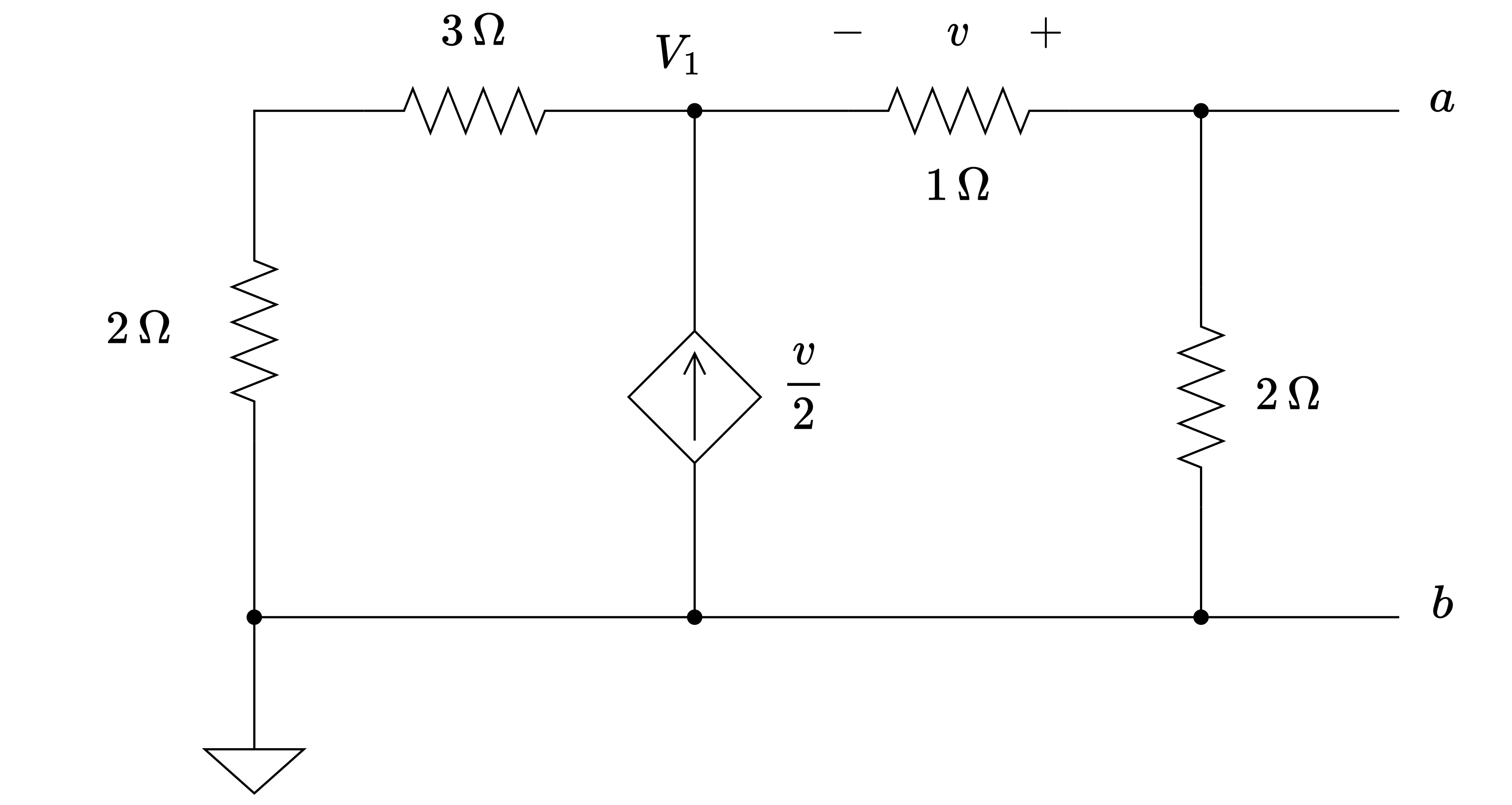

Find the Thevenin's equivalent circuit for the following circuit. Assume i > 0 and v > 0.

View this question

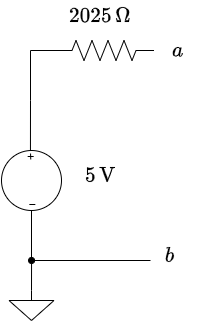

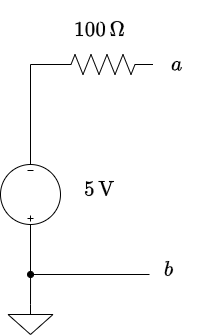

Q3. Thevenin's Equivalent Circuit

Find the Thevenin's equivalent circuit for the following circuit.

View this question

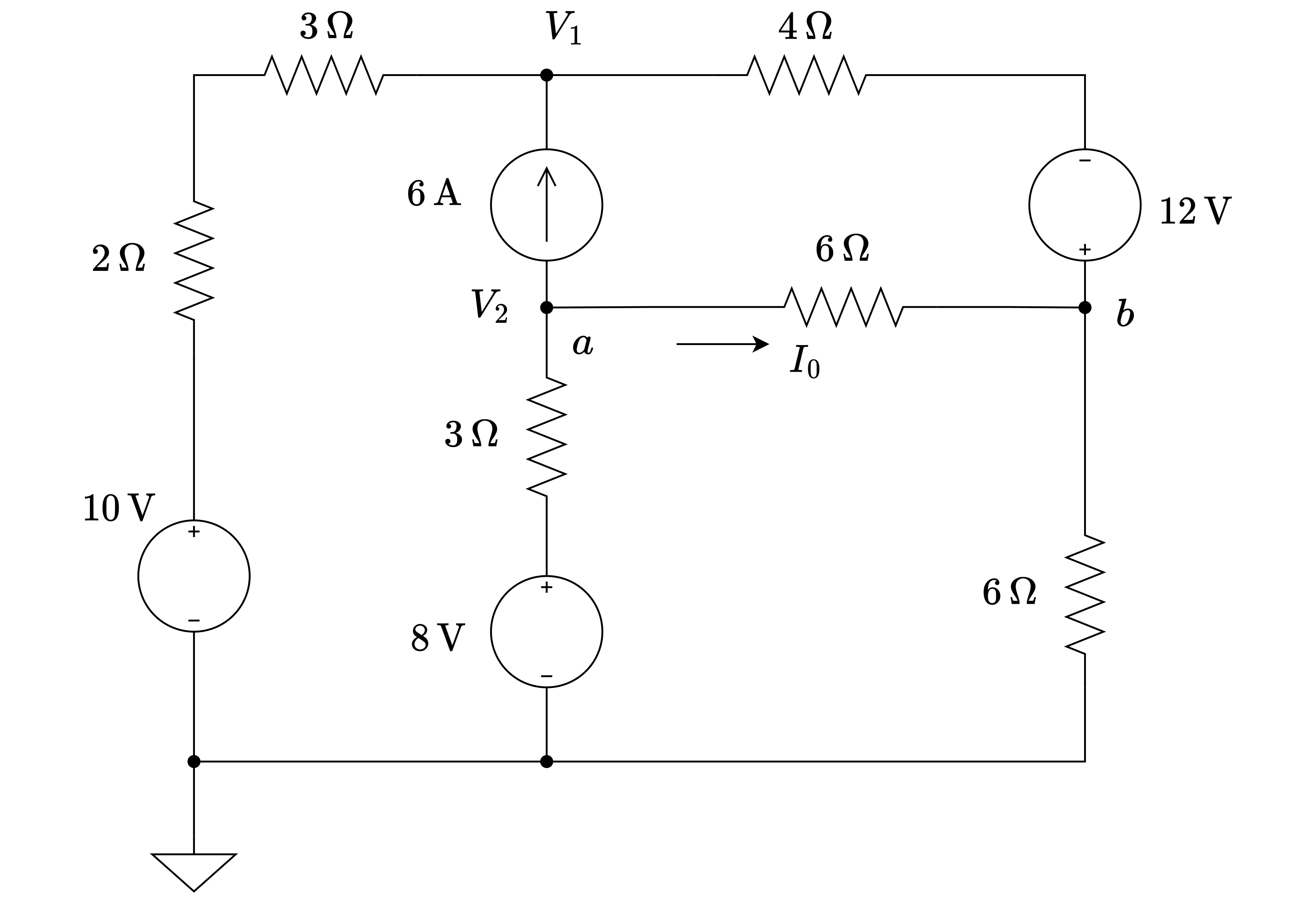

Q2. Norton’s Equivalent Circuit

Find I_0 using Norton’s theorem.

-3.444 A

-2.444 A

4.333 A

2.444 A

3.444 A

View this question

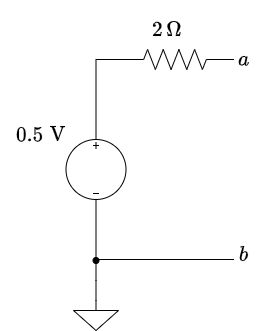

Q1. Thevenin's Equivalent Circuit

Find the Thevenin's equivalent circuit for the following circuit.

View this question

Q2. Determine the RMS value of noise voltage

Equivalent noise bandwidth of a single pole filter is given by $\frac{\pi}{2}\omega_{3dB}$ \frac{\pi}{2}\omega_{3dB}, where $\omega_{3dB}$ \omega_{3dB} is the $3\text{dB}$ 3\text{dB} bandwidth of the single pole filter in rad/s. Suppose a spectrum analyzer measures a noise voltage spectral density of $1\mu\text{V}/\sqrt{\text{Hz}}$ 1\mu\text{V}/\sqrt{\text{Hz}} before a single pole filter with $3\text{dB}$ 3\text{dB} bandwidth of $5\text{MHz}$ 5\text{MHz}. What is the RMS value of this noisy signal over an infinite bandwidth?

1.4 mV

2 mV

2.8 mV

2.5 mV

1 mV

View this question

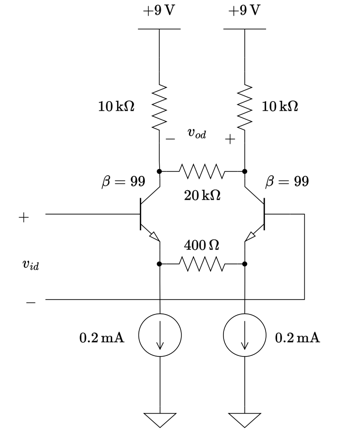

Q10. Determine the small signal differential gain

What is the small signal differential gain $v_{od}/v_{id}$ v_{od}/v_{id} for the differential pair below at temperature 300K. Assume both transistor are identical.

15

23

12

9.4

19

View this question
