ECE212s (UG2023) - Introduction to Electronics (39309)
Looking for ECE212s (UG2023) - Introduction to Electronics (39309) test answers and solutions? Browse our comprehensive collection of verified answers for ECE212s (UG2023) - Introduction to Electronics (39309) at lms.eng.asu.edu.eg.
Get instant access to accurate answers and detailed explanations for your course questions. Our community-driven platform helps students succeed!
For a MOS transistor operating in pinch-off saturation.
if the Overdrive voltage "Vov" is multiplied by 1.6, then the drain current "ID" is multiplied by how much?

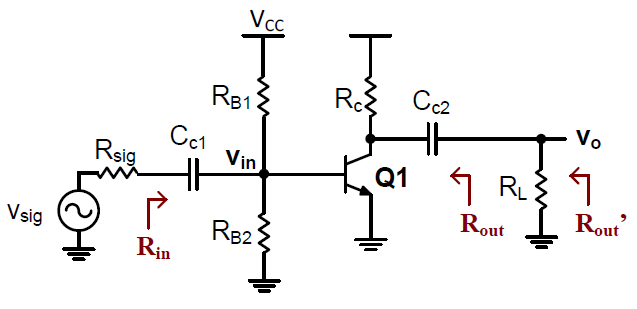

For the CE amplifier below, if vin/vsig = 0.65 and |vout/vin| = 69, then |vout/vsig| = .....
For the CE amplifier below, if VCC = 10 V, beta = 100, RB1 = 158 kOhm, RB2 = 80 kOhm, and VON = 0.7 V, then IC = ..... mA.
The CE amplifier below provides .....
For the CE amplifier below, if VT = 26 mV, beta = 100, RB1 = 11.7 kOhm, RB2 = 8.6 kOhm, and IC = 1 mA, then Rin = ..... kOhm.
For the CE amplifier below, if Rin = 10 kOhm and Rsig = 4.1 kOhm, then vin/vsig = .....
For the CE amplifier below, if RC = RL = 6.9 kOhm, then Rout' = ..... kOhm.
For the CE amplifier below, if VCC = 13 V, RC = 2.2 kOhm, and VCEQ = 7.3 V, then ICQ = ..... mA.
For the CE amplifier below, the current gain is always less than beta.
For the CE amplifier below, if VT = 26 mV, RC = RL = 3.9 kOhm, and IC = 1.9 mA, then |vout/vin| = .....
