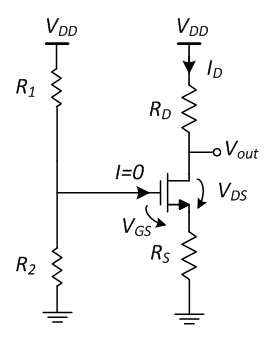

For the circuit below, if VDD = 11 V, RD = 4.4 kOhm, RS = 4 kOhm, VDS = 1.4 V, then ID is equal to ..... mA.
For the circuit below, if VDS = 4.2 V, RS = 1.3 kOhm, ID = 0.6 mA, then Vout is equal to ..... V.
For the shown amplifier circuit, if VDD = 12 V, R1 = 1.4 kOhm, R2 = 5.4 kOhm, and the voltage across RS is 1.7 V, then VGS = ..... V.
For a given one port circuit, the short circuit output current is 0.7 mA and the Thevenin impedance is 1.9 kOhm. The open circuit voltage is ..... V.

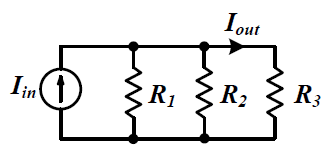

For the shown current divider, if R1 = R2 = 1 kOhm and R3 = 3.6 kOhm, then Iout/Iin = .....
