For the shown amplifier circuit, if VDD = 9 V, R1 = 1.8 kOhm, R2 = 4.5 kOhm, and the voltage across RS is 1.8 V, then VGS = ..... V.
For the shown amplifier circuit, if ID = 1.9 mA and RD = 1.2 kOhm, then the voltage drop across RDÂ is equal to ..... V.

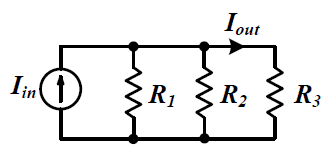

For the shown current divider, if R1 = R2 = 1 kOhm and R3 = 1.9 kOhm, then Iout/Iin = .....
For the circuit below, if VDS = 3.6 V, RS = 1.8 kOhm, ID = 0.5 mA, then Vout is equal to ..... V.
For the circuit below, if VDD = 10 V, RD = 1 kOhm, RS = 1.4 kOhm, ID = 0.5 mA, then VDS is equal to ..... V.
Assume VON = 0.7 V. If VS = 10.3 V and R = 7.3 kOhm, then VX = ..... V.
Assume VON = 0.7 V. If VS = 1.8 V and R = 4.2 kOhm, then VX = ..... V.
Assume VON = 0.7 V. If VS = 9.5 V and R = 3.6 kOhm, then the current flowing in R is equal to ..... mA.
The most accurate model of the pn-junction diode is the ..... model.
Assume VON = 0.7 V. For a HWR circuit, if the input has amplitude = 9.8 V, then the maximum voltage at the output is equal to ..... V.
