Assume VON = 0.7 V. For a FWR circuit using center-tapped transformer, if the input has amplitude = 1.7 V, then the maximum voltage at the output is equal to ..... V.

Assume VON = 0.7 V. If VS = 3.3 V and R = 7.9 kOhm, then the current flowing through R is equal to ..... mA.

Assume VON = 0.7 V. If VS = 9 V, VG = -2.2 V and R = 6.9 kOhm, then the current flowing through R is equal to ..... mA.

Assume VON = 0.7 V. For a FWR circuit using center-tapped transformer, if the input has amplitude = 2 V, then the maximum (peak) reverse voltage applied to the diode is equal to ..... V (write the answer as a positive number).

The circuit element whose I-V characteristics is a family of horizontal curves, where each curve depends on a specific voltage in the circuit is a .....

Digital circuits will completely replace analog circuits in the future.

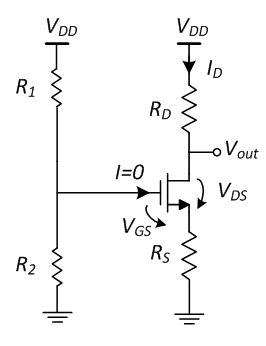

For the circuit below, if VDD = 9 V, RD = 3 kOhm, RS = 1.6 kOhm, ID = 0.4 mA, then VDS is equal to ..... V.

For the shown amplifier circuit, if ID = 1.8 mA and RD = 1.7 kOhm, then the voltage drop across RD  is equal to ..... V.

Modern microprocessors contains _____ of transistors.

For the shown amplifier circuit, if the voltage drop across RD is 7 V and RD = 7.9 kOhm, then ID is equal to ..... mA.
